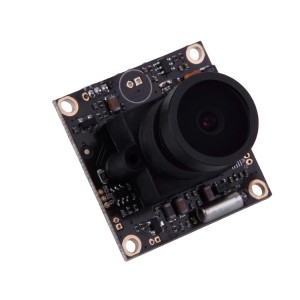

Miniature pinhole camera, the perfect solution for low cost, undetected, do their own monitoring.
With a high resolution of 700 TV lines.
Comes with a 2.1mm MTV board lens.
Plate with 2.1mm MTV lens.
Easy plug & play installation lets you install in minutes and be ready to monitor or record.
Easy Plug and Play installation, so you are ready to install in a few minutes monitoring or recording.
Adapts to lighting changes very fast, which is essential for FPV flying that typically encounter constant changes in various lighting conditions.
Adapt to light changes very quickly, which is FPV flight, often we encounter nature in a variety of lighting conditions constantly change.
Specifications:
Specification
Power Input: 12VDC
Power input: DC 12V
Horizontal Resolution: 700 TVL
Horizontal resolution: 700 TV lines
Effective Pixel: 976 (H) x 494 (V)
Effective pixels: 976 (h) × 494 (V)
S / N: More than 48Db
The S / N: 50dB above
Gamma: 0.45
Gamma: 0.45
Video Format: NTSC (and PLA format)
Synchronization System: Internal
Function: OSD menu control
Light: 0.01lux / F1.2
Video Output: 1.0vp-p / 75ohm
Shutter: 1/50 (sec) to 1 / 100,000 (sec).
Lens: 2.1mm
Storage temperature: -20 to 60C
Material: Plastic
material: plastic
Color: Black
Colour: Black
Dimension: L: 31mm x W: 30mm
Dimensions: Length: 31mm x Width: 30mm
Net Weight: 17g
Net Weight: 17g
Package includes:
|
