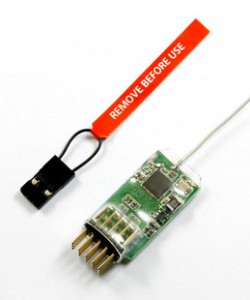

2.4G 4-Channel MICROLITE DSM2 /DSMX Receiver 4100E (JR/SPEKTRUM Compatible)
-. JR / 스펙트럼 호환 수신기 (DSM2 / DSMX에 호환 됩니다.)
4 channels
Preset failsafe system
Compatibility (Spectrum and JR DSM2 and DSMX): DX6I,DX7,DX8,DSX7,DSX9 DSX11
-.제원
Type: 4-Channel Full-Range DSM2 Receiver
Modulation: DSM2 /DSMX
Band: 2.4GHz
Dimensions (L xWx H):29x16x7mm
Weight: 3g
Voltage Range: 3.6-10v
Antenna Length Main RX: 29mm
Compatibility (JR DSM2 and DSMX): DX6I, DX7, DX8, DSX7 DSX9 DSX11 Receiver
-.바인딩 방법
1. Put the binding harness into the Channel marked BIND. Next apply power to the receiver.
Receiver’s LED should illuminate.
2. To set fail-safe throttle and control surface positions, (minimum throttle and all control surfaces set to neutral is suggested).
Press and hold the bind button of transmitter (LED will illuminate), Turn on the transmitter.
3. Receiver LED will change from rapid flashing to slow flashing and a few seconds later when bind is accomplished the
LED of receiver will illuminate solid. All fail-safes should be programed correctly now.
4. Remove binding harness from the BIND channel. Restart the receiver by cycling it power off and turn on. All channels should function properly now. You may test fail-safe by holding sticks in corner, cycle transmitter on and off. Surfaces and throttle should return to your preset fail-safe positions.
|
