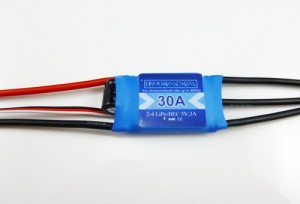

iQ 30A
iPeaka iQ series Speed Controllers are designed for use in multi-rotor type aircraft, and have all of the parameters pre-set for that purpose.
The iPeaka iQ series speed controllers are able to accept input signal refresh rates of up to 400Hz, so they are compatable with virtually all of the flight controller boards that are available today.
These controllers are also fully programmable and are compatable with the Hobbywing type programing card.
The 30 Amp model features pre-tinned wires on the battery and motor sides of the ESC so they are ready to solder to your favorite connectors or motors.
Features of the iPeaka iQ series Speed Controllers include:
• Extremely low output resistance for efficient operation
• 3-stage protection: Low Voltage Cutoff, Over-Heat Protection & Signal Loss
• 3 Start Modes available: Normal, Soft and Very Soft
• Adjustable Throttle Endpoints to match virtually all transmitter models
• Smooth linear throttle operation for precise control
• High RPM capability: 210,000 (2-pole), 70,000 (6-pole), 30,000 (14 pole)
Specifications of the iPeaka iQ 30 Amp Speed Controller:
Input Voltage ..................... 6-18.8 VDC, 2-4 Li-Po cells
Input rate range................ 50-400Hz
Output Current ................... 30 Amps Continous, 40 Amps Burst (10 Sec.)
BEC Output ...................... 5.0 Volts at 3 Amps
Dimensions ........................ 48 x 26 x 11 mm
Weight ............................... 28g |
