• Newly designed DFC low wind resistance rotor head assembly with reduced distance between rotor head and frame, effectively lowering the CG for better 3D performance.
• Single piece integrated design of main bearing block and servo mount.
• Single piece integrated design of anti-rotation guide and gyro mount.
• Single piece integrated landing gear.
• Newly designed high resolution swashplate.
• Single piece battery mount with integrated canopy mount designed to bring CG closer to disk plane.
• Highly rigid frame with single piece carbon side and bottom plates.
• Highly efficient shaft driven tail design.
• Weighted tail rotor blade grips to repel centripetal forces.
• Straight-up in-frame alloy rudder servo mount for improved geometry and better CG.
• Newly designed FIRE fiber glasscanopy.
• Newly designed high strength main blade grips.
• Upgraded metal tail slider and tail slider control arm.
Specs:
Length: 635mm
Height: 230mm
Main Rotor Diameter: 710mm
Tail Rotor Diameter: 158mm
Motor Drive Gear: 13T
Main Drive Gear: 150T
Autorotation Tail Drive Gear: 106T
Tail Drive Gear: 25T
Drive Gear Ratio: 1:11.5:4.24
Weight (w/o power system): 530g
Flying Weight: Approx. 640g
Includes:

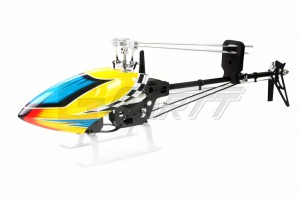

GARTT DFC 450TT Helicopter Kit
KST DS115MG DIGITAL SERVO X 3
HOBBY WING 40A ESC
K-BAR GYRO
GOTECK 9257MG DIGITAL SERVO
Glass Fiber Main Blades
Tail Blades
Fire fiber glass canopy
All Necessary Hardware
Required items:
Lipoly Battery (2200mAh 3S)
1. tarot 3600kv 모터가 기본 사양으로 포함!
2. Hobby wing platinm 40A RC Brushless Speed Controller ESC
3. 250급 부터 700급, 그리고 니트로까지 모두 대응하는 팔방미인!
k-bar 3-Axis Gyro System 기본 사양으로 포함!

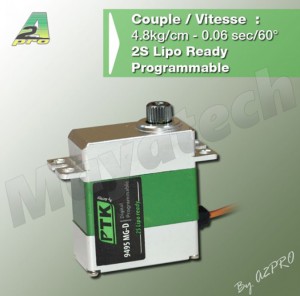

4. PTK DS9495MG DIGITALSERVO 3개 포함.
* 가격대비 최고의 450급 사이클릭(스와시)용 서보입니다. 강력추천합니다!!
5. GS-9257MG servo 디지탈테일서보1개 포함.
|
