제품명 : F-16 Falcon 64mm EDF (F16 펠콘 64mm 덕트팬)
- PNP 포함 기자재 : 기체 KIT, 모터, ESC, 서보
- PNP 미포함(소비자 구매) : 배터리, 충전기, 수신기, 송신기(조종기)
- 제품 SPEC
- Material (재질) : Durable EPO
- Wingspan (윙스팬) : 730mm
- Overall Length (전장길이) :1100mm
- Flying Weight (기체무게) : 900g
- Motor Size (모터) : 2840-KV3900 Brushless Motor
- EDF Diameter (덕트팬지름) : 64mm 11blade
- ESC (변속기) : 40A Brushless ESC
- Servo (서보) : 5X 9g high speed micro servos
- Retract System (랜딩기어) : Fixed main gear, steerable nose gear
- Recommended Battery (권장 배터리) : 11.1V 2200mAh 35C Li-Po
- Radio (송수신기) : 4 channel 2.4GHz Radio Transmitter
Key Features
- New, more powerful 2840-KV3900 Motor
- Scale details including independent elevators and dual engine exhausts.
- Steerable nose gear for easy taxi, take off, and landing
- Detailed wing surfaces and US Air Force decals
- Motor, ESC, and servos come preinstalled for quick assembly
- Can perform ground takeoffs and hand launches
미포함 물품 구매 안내
배터리 : Li-Po 11.1V 2200mAh 25C
충전기 : Li-Po Balance Charger
송수신기 : 2.4GHz 4ch이상
|
Wingspan |
730mm / 28.7in |
|
Length |
1100mm / 43.3in |
|
Flying Weight |
900g |
|
Power System |
Brushless 2840-3900Kv |
|
Speed Control |
40A, C, XT60 Connector |
|
Propeller / EDF |
64mm EDF |
|
Servos |
9g×5 |
|
Landing Gear |
Fixed |
|
Required Battery |
11.1V 2200mAh 30C 3 cell LiPo |
|
Required Radio |
4 Channel |
|
Rudder |
No - use channel to steer front wheel |
|
Flaps |
No |
|
Ailerons |
Yes |
|
Lights |
No |
|
Hinge Type |
Nylon pinned hinges on all control surfaces |
|
Material |
EPO Foam |

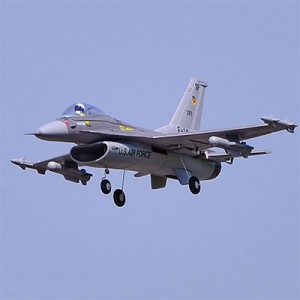

RocHobby F-16 V2 64mm
FMS is pleased to announce that all 64mm ducted fan aircrafts are being upgraded, beginning with the release of the 64mm F-16 V2. Inspired by the superior features of the original model, version two (V2) has improved mechanical and structural features that will enhance air performance and decrease assembly time.
A fiber pipe greatly enhances the wing strength for enhanced flying maneuvers. An improved main wing set and landing gear installation optimizes strength of structure and reduces assembly time.
Plus, the latest 64mm ducted fan can achieve more than 800 grams of thrust.
The differences in speeds between the V1 and V2 will be noticeable. If you’ve got the “need for speed,” accessories such as missiles can be removed to create a faster, more streamlined model.
Features
-280mm fiber pipe inserted through the fuselage and main wing
-Use of four inner-hexagon screws instead of glue improves main wing set and landing gear installation optimizing strength of structure.
-Improved main wing set and landing gear installation. This optimizes strength of structure and reduces assembly time.
-New more powerful 64mm 11-blade ducted fan with up to 800 grams of thrust.
-New 2840-KV3900 motor
-Five 9g servos
-New Predator 40A ESC
-The latest FMS EPO foam material creates stronger, more impact-resistant planes.
-Environmentally friendly water-based paint minimizes blistering from sun.
-Pre-installed, newly designed control horns allows more throw.
