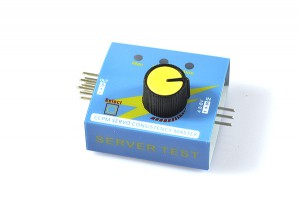

CCPM Servo Consistency Master/ Servo Tester

● 서보, 전자변속기 테스트가 가능한 제품입니다. (서보테스트)

● 3가지 기능 (스위치를 눌려서 선택합니다)

    메뉴얼 모드 : 다이얼을 돌려 서보작동 유무 확인 가능

    중립 모드 : 서보 중립 가능

    오토 모드 : 좌우로 서보 혼이 자동으로 움직입니다.

● 사이즈 : 36.5mm x 31.0mm x 22mm

Product Name: Servo Tester
Specifications:
(1) Output: ≤ 15mA (5.0)
(2) Input: DC 4.5-6.0v
(3) Output signal: 1.5ms ± 0.5ms
(4) Dimensions: 42.5 x 24.0 x 23.5mm
(5) Weight: 8g
(6) regulation modes: manual, automatic, with a median.
Features: the ability to easily detect and configure the server's virtual position, jitter and median.
Can connect two sets of steering gear or power transfer; MCU control, good stability and high accuracy. Turn the knob, steering gear can be detected.
If the connection electronic governor (with brush or brushless can be), you can get rid of remote control devices for manual speed control, adjusted for testing
Speed or motor performance is very practical, no longer red tape connected a remote control and receiver. It is equivalent to a "hand
Moving the receiver "function, knob analog transmitters to play through the rudder.
